New Holland 3630 TX Super

SPECIFICATIONS :-


Make :-  New Holland Fiat (India) Pvt. ltd.
Model:- IVECO

Drive:-   2WD

Engine
Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-   3

Horse power:-         50 HP

Pollution norms:-   BS III A

Fuel Injection Pump:-Rotary

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R / 12F+3R (optional)
Shift :-                    Side-shift
Clutch:-                  Double Clutch
Type:-                     Diaphragm Type, Single
Size :-                      11'
Differential:-          Open Differential
Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump
Lift capacity :-   1700 kg
Hitch :-               3 point , CAT II

Steering

Type:-                 Mechanical Steering / Power steering optional

Power take off

PTO HP :-           47 HP
No. of splines :-   6
PTO rpm :-         540

Cooling and cleaning

Forced water cooled

Oil bath type Air Cleaner
Electrcal
Battery :-           12V 88AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-        Oil Immersed Multi Disc Brakes
Actuation :-          Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              6.00-16   8  Ply Rating

Rear tires :-              14.9-28  12 Ply Rating/16.9-28 optional

Videos
1. Sonalika 60 DI VS Ford New Holland 3630 Turbo !!

2. New Holland 3630 TX Super Turbo With 500 Qt. Load Trolley
3. New Holland 3630 on Reaper with 13.6-38 Tyres
4. Arjun 605 Ultra vs New Holland 3630 TX Super !
5. TRACTORS RACE New Holland 3630 TX vs John Deere 5310 and many more tractors

6. New Holland 3630 TX Super Working with 13 tine Cultivators !

7. Stunt With New Holland 3630 with 13 tillers

8. Farmtrac 65 EPI VS New Holland 3630 TX Super Semi final !

9. Ford 3610 V/S New Holland 3630 !

10. Ford 3610 vs New Holland 3630 Super !!

11. Ford New Holland 3630 + Farmtrac 60 SM Pulling 25 ton loaded

  12. Ford New Holland 3630 v/s Swaraj 855 XM !! ATT HO GI 22 !!







New Holland 3600-2 TX

SPECIFICATIONS :-

Make :-  New Holland Fiat (India) Pvt. ltd.
Model:- IVECO

Drive:-   2WD

Engine
Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-   3

Horse power:-         50 HP

Pollution norms:-   BS III A

Fuel Injection Pump:-Rotary

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R
Shift :-                    Side-shift
Clutch:-                  Double Clutch
Type:-                     Diaphragm Type, Single
Size :-                      11'
Differential:-          Open Differential
Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump
Lift capacity :-   1700 kg
Hitch :-               3 point , CAT II

Steering

Type:-                 Mechanical Steering / Power steering optional

Power take off

PTO HP :-           47 HP
No. of splines :-   6
PTO rpm :-         540

Cooling and cleaning

Forced water cooled

Oil bath type Air Cleaner
Electrcal
Battery :-           12V 88AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-        Oil Immersed Multi Disc Brakes
Actuation :-          Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              6.00-16   8  Ply Rating

Rear tires :-              14.9-28  12 Ply Rating/16.9-28 optional

New Holland 4510

SPECIFICATIONS :-

Make :-  New Holland Fiat (India) Pvt. ltd.

Drive:-   2WD

Engine
Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-   3

Horse power:-         42 HP (cat.)

Pollution norms:-   BS III A

Fuel Injection Pump:- Inline

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R  (8F+8R Optional)
Shift :-                    Side-shift
Clutch:-                  Single/Double Clutch
Type:-                     Diaphragm Type, Single
Size :-                      11'
Differential:-          Open Differential
Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump
Lift capacity :-   1500 kg
Hitch :-               3 point , CAT II

Steering

Type:-                 Mechanical Steering / Power steering optional

Power take off

PTO HP :-           39 HP
No. of splines :-   6
PTO rpm :-         540

Cooling and cleaning

Forced water cooled

Oil bath type Air Cleaner
Electrcal
Battery :-           12V 75AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-        Oil Immersed Multi Disc Brakes
Actuation :-          Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              6.00-16   8  Ply Rating

Rear tires :-              13.6-28  12 Ply Rating

New Holland 3230 NX

SPECIFICATIONS :-

Make :-  New Holland Fiat (India) Pvt. ltd.

Drive:-   2WD

Engine
Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-   3

Horse power:-        42 HP

Pollution norms:-   BS III A

Fuel Injection Pump:- Inline

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R, Side-Shift
Clutch:-                  Single Clutch
Type:-                     Diaphragm Type, Single
Size :-                      11'
Differential:-          Open Differential
Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump
Lift capacity :-   1500 kg
Hitch :-               3 point , CAT II
\
Steering

Type:-                 Mechanical Steering
Single drop arm

Power take off

PTO HP :-           39 HP
No. of splines :-   6
PTO rpm :-         540

Cooling and cleaning

Forced water cooled

Oil bath type Air Cleaner
Electrcal
Battery :-           12V 75AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-        Oil Immersed Multi Disc Brakes
Actuation :-          Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              6.00-16   8  Ply Rating

Rear tires :-              13.6-28  12 Ply Rating

New Holland 4010

SPECIFICATIONS :-

Make :-  New Holland Fiat (India) Pvt. ltd.

Drive:-   2WD

Engine
Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-   3

Horse power:-         40 HP (cat.)

Pollution norms:-   BS III A

Fuel Injection Pump:- Inline

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R, Side-Shift
Clutch:-                  Single Clutch
Type:-                     Diaphragm Type, Single
Size :-                      11'
Differential:-          Open Differential
Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump
Lift capacity :-   1500 kg
Hitch :-               3 point , CAT II
Steering

Type:-                 Mechanical Steering
Single drop arm

Power take off

PTO HP :-           36 HP
No. of splines :-   6
PTO rpm :-         540

Cooling and cleaning

Forced water cooled

Oil bath type Air Cleaner
Electrcal
Battery :-           12V 75AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-        Oil Immersed Multi Disc Brakes
Actuation :-          Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              6.00-16   8  Ply Rating

Rear tires :-              13.6-28  12 Ply Rating

New Holland 3037

SPECIFICATIONS :-

Make :-  New Holland Fiat (India) Pvt. ltd.

Drive:-   2WD

Engine
Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-   3

Horse power:-        37 HP

Pollution norms:-   BS III A

Fuel Injection Pump:- Inline

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R, Side-Shift
Clutch:-                  Single Clutch
Type:-                     Diaphragm Type, Single
Size :-                      11'
Differential:-          Open Differential
Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump
Lift capacity :-   1500 kg
Hitch :-               3 point , CAT II

Steering

Type:-                 Mechanical Steering
Single drop arm

Power take off

PTO HP :-           34 HP
No. of splines :-   6
PTO rpm :-         540

Cooling and cleaning

Forced water cooled

Oil bath type Air Cleaner
Electrcal
Battery :-           12V 75AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-        Oil Immersed Multi Disc Brakes
Actuation :-          Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              6.00-16   8  Ply Rating

Rear tires :-              13.6-28  12 Ply Rating

New Holland 3510

SPECIFICATIONS :-

Make :-  New Holland Fiat (India) Pvt. ltd.

Drive:-   2WD

Engine
Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-   3

Horse power:-        35 HP

Pollution norms:-   BS III A

Fuel Injection Pump:- Inline

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R, Side-Shift
Clutch:-                  Single Clutch
Type:-                     Diaphragm Type, Single
Size :-                      11'
Differential:-          Open Differential
Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump
Lift capacity :-   1500 kg
Hitch :-               3 point , CAT II

Steering

Type:-                 Mechanical Steering
Single drop arm

Power take off

PTO HP :-           32 HP
No. of splines :-   6
PTO rpm :-         540

Cooling and cleaning

Forced water cooled

Oil bath type Air Cleaner
Electrcal
Battery :-           12V 75AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-        Oil Immersed Multi Disc Brakes
Actuation :-          Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              6.00-16   8  Ply Rating

Rear tires :-              13.6-28  12 Ply Rating

New Holland 3030 MU

SPECIFICATIONS :-

Make :-  New Holland Fiat (India) Pvt. ltd.

Drive:-   2WD

Engine
Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-   3

Horse power:-        35 HP

Pollution norms:-   BS III A

Fuel Injection Pump:- Inline

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R, Side-Shift
Clutch:-                  Single Clutch
Type:-                     Diaphragm Type, Single
Differential:-          Open Differential
Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump
Lift capacity :-   1200 kg
Hitch :-               3 point , CAT II

Steering

Type:-                 Mechanical Steering
Single drop arm

Power take off

PTO HP :-           32 HP
No. of splines :-   6
PTO rpm :-         540

Cooling and cleaning

Forced water cooled

Oil bath type Air Cleaner
Electrcal
Battery :-           12V 75AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-        Oil Immersed Multi Disc Brakes
Actuation :-          Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              5.00-16   8  Ply Rating

Rear tires :-              11.2-28  12 Ply Rating

New Holland 3030

SPECIFICATIONS :-

Make :-  New Holland Fiat (India) Pvt. ltd.

Drive:-   2WD

Engine
Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-   3

Horse power:-        35 HP
Pollution norms:-   BS III A

Fuel Injection Pump:- Inline

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R, Side-Shift
Clutch:-                  Single Clutch
Type:-                     Diaphragm Type, Single
Differential:-          Open Differential
Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump
Lift capacity :-   1200 kg
Hitch :-               3 point , CAT II

Steering

Type:-                 Mechanical Steering
Single drop arm

Power take off

PTO HP :-           32 HP
No. of splines :-   6
PTO rpm :-         540

Cooling and cleaning

Forced water cooled

Oil bath type Air Cleaner
Electrcal
Battery :-           12V 75AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-        Oil Immersed Disc Brakes
Actuation :-          Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              6.00-16   8  Ply Rating

Rear tires :-              12.4-28  12 Ply Rating
\

New Holland 3032

SPECIFICATIONS :-

Make :-  New Holland Fiat (India) Pvt. ltd.

Drive:-   2WD

Engine
Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-   3

Horse power:-        32 HP
Pollution norms:-   BS III A

Fuel Injection Pump:- Inline

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R, Side-Shift
Clutch:-                  Single Clutch
Type:-                     Diaphragm Type, Single
Differential:-          Open Differential
Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump
Lift capacity :-   1200 kg
Hitch :-               3 point , CAT II

Steering

Type:-                 Mechanical Steering
Single drop arm

Power take off

PTO HP :-           28 HP
No. of splines :-   6
PTO rpm :-         540

Cooling and cleaning

Forced water cooled cooling system

Oil bath type Air Cleaner
Electrcal
Battery :-           12V 75AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-        Oil Immersed
Actuation :-          Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              6.00-16   8  Ply Rating

Rear tires :-              12.4-28  12 Ply Rating

ACE DI 450

SPECIFICATIONS :-

Make :-  ACE Limited

Model:-  A498 BT

Drive:-   2WD

Engine

Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-  4

Horse power:-        45 HP
Bore/Stroke:-          98/105mm
Cubic Capacity:-   3168
Rated RPM:-         2300

Pollution norms:-   BS III

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R
Forward Speed :-  2.40-33.80 km/hr
Reverse Speed:-     3.62-11.90 km/hr
Clutch:-                  Single Clutch (dual optional)
Type:-                     Dry Single Plate
Size :-                      280mm


Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump

Lift capacity :-   1200 kg

Hitch :-               3 point , CAT II
Steering

Type:-                 Mechanical Steering
Single drop arm

Power take off

PTO HP :-           42 HP
No. of splines :-   6
PTO rpm :-         540 @ 1900 Erpm

Cooling and cleaning

Forced water cooled cooling system

Oil bath type Air Cleaner
Electrcal
Battery :-           12V 88AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-      Oil Immersed
Actuation :-        Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              6.00-16   8  Ply Rating

Rear tires :-              13.6-28  12 Ply Rating (14.9-28 optional)
Dimensions(mm)
Total Length :-              3610
Total Width :-               1730
Total Height:-               2345
Wheel Base:-                1950
Ground Clearance:-    415
Total Weight(kg):-       2000
Turning Radius :-        3200
Capacities
Fuel Tank:-                  56 ltr
Engine sump:-             8 ltr

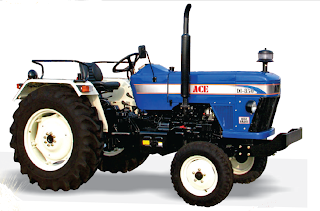

ACE DI 350

SPECIFICATIONS :-

Make :-  ACE Limited

Model:-  C490BT

Drive:-   2WD

Engine

Type:-                      DI, 4 Stroke, Diesel
No. of cylinders :-  4

Horse power:-        35 HP
Bore/Stroke:-          90/105mm
Cubic Capacity:-   2670
Rated RPM:-         2300

Pollution norms:-   BS III

 Transmission
Type :-                    Constant mesh gearbox

No. of gears :-        8F+2R
Forward Speed :-  2.30-32.77 km/hr
Reverse Speed:-     2.92-11.53 km/hr
Clutch:-                  Single Clutch
Type:-                     Dry Single Plate
Differential:-          Open Differential with Diff. Lock


Hydraulics & Lift

Hydraulic pump:- Fully live

Pump type :-      Gear Pump

Lift capacity :-   1200 kg

Hitch :-               3 point , CAT II
Steering

Type:-                 Mechanical Steering
Single drop arm

Power take off

PTO HP :-           31 HP
No. of splines :-   6
PTO rpm :-         540 @ 1900 Erpm

Cooling and cleaning

Forced water cooled

Oil bath Air Cleaner
Electrcal
Battery :-           12V 75AH battery
Alternator:-       12V-35 Amp.
Brakes
Brake type :-      Oil Immersed
Actuation :-        Mechanical
Parking Brake :-  fully independent
Tires

Front tires:-              6.00-16   8  Ply Rating

Rear tires :-              12.4-28  12 Ply Rating
Dimensions(mm)
Total Length :-              3610
Total Width :-               1690
Total Height:-               2320
Wheel Base:-                1950
Ground Clearance:-    380
Total Weight(kg):-       2000
Turning Radius :-        3200
Capacities
Fuel Tank:-                  56 ltr
Engine sump:-             7.5 ltr
