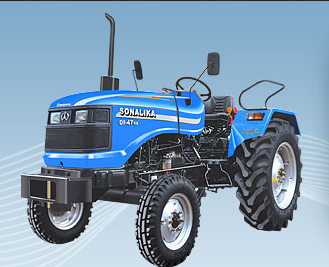

Sonalika DI-47 RX

SPECIFICATIONS :-


Make :-    International Tractors Limited
Model:-   DI-47 Rx
Drive:-    2WD

                             Engine
Horse power:-          47HP
No. of cylinders :-    3

Cubic capacity:-       2893cc
Rated RPM:-            2100rpm

                           Transmission
Gear box :-      Constant mesh
No. of gears :-  8F+2R
Diff. Lock:-      Foot Operated

                           Speed

Forward :-        2.50- 30.92 kmph

Reverse:-          3.09-12.39 kmph

                          Hydraulics
 Live hydraulic pump
Pump type :- Double Gear Pump
                           Towing-Hitch
Lift capacity :-             1200 kg
Hitch :-                         3 point , CAT II
                             Steering
Mechanical steering/Power Steering
                             Power take off
PTO hp:-            44hp
No. of splines :-  6
PTO rpm:-         540
                            Clutch
Dual
Heavy duty
Size :-               280mm

                           Cooling and cleaning

water cooled cooling system
it has Dry type cleaning system

                          Electricals

battery :- 12v  75AH battery

                          Brakes

Heavy duty, Dry /Oil Immersed Disk brakes

                        Dimensions (in mm)

Ground Clearance:-      425
Wheel Base :-               1964
Total Weight(kg) :-       2060

                        Capacities(ltr.)
Fuel Tank :-                55
                          Tires
Front tires:-              6.00-16, 8Ply Rating
Rear tires :-              13.6-28, 12Ply Rating
