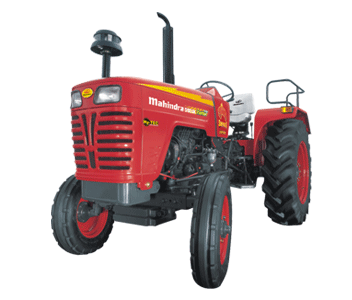

Mahindra 595 DI Turbo

SPECIFICATIONS :-

Make :- Mahindra and Mahindra

Model:- MDI-3000 TC
                         Engine

Turbocharged Engine
Horse power:-       52(38.8kw)
No. of cylinders :- 4
bore and stroke :-  88.9x101.6mm
Cubic capacity:-    2523cc
Max torque:-         17.32kgm
                       Transmission
Gear box :-        Partialy constant mesh
No. of gears :-  8 forward 2 reverse

speed:- forward 2.74-32.24 kmph
             reverse 4.16-14.42 kmph
                       Hydraulics

Hydraulic lift capacity :- 1600kg

                     Power take off
  49.1HP
standard 6 spline P.T.O
540 pto rpm @ 1600 engine rpm
                       Clutch

Heavy duty single dry plate
size 11"
                 Cooling and cleaning
water cooled
1:- cyclonic pre cleaner
2:- paper element
3:- oil bath filter
                     Electricals
battery :- 12v

                      Brakes
Mechanical dry disk brakes

                     Capacities
Fuel tank :-              56 liter
Engine sump:-         7.6 liter
Transmission oil :-  20 liter
Hydraulic oil :-       11.5 liter
                        Dimensions (in mm)
Total Length :-         3260
Total width :-           1625
Total Height:-          2020
Wheel Base:-           1934
Ground Clearance:- 350
 weight(kg):-            1800
Turning Radius :-    3650
                         Tyres
 Front tyres:-           6.00-16 , 8 ply rating
Rear tyres :-            13.6-28, 12 ply rating
