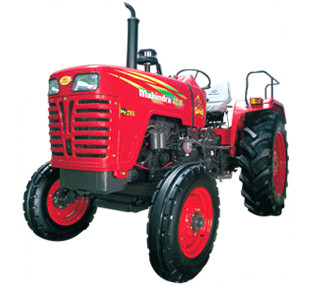

Mahindra Sarpanch 475 DI

SPECIFICATIONS :-

Make :- Mahindra and Mahindra
Model:- MDI-2385
                         Engine
Horse power:-       42
No. of cylinders :- 4
bore and stroke :-  88.9x96mm
Cubic capacity:-    2730cc
Max torque:-         140Nm @1200-1400rpm
                       Transmission
Gear box :-        Partialy constant mesh
No. of gears :-  8F+2R

speed:- forward 2.74-30.48 kmph
             reverse 4.16-12.42 kmph
                       Hydraulics

Hydraulic lift capacity :- 1200kg

                     Power take off
38.5 HP
standard 6 spline P.T.O
540 pto rpm @ 1600 engine rpm
                     Steering
  Mechanical
                    Clutch
Dual clutch,
Heavy duty single dry plate
size 11"
                 Cooling and cleaning
water cooled
1:- cyclonic pre cleaner
2:- paper element
3:- oil bath filter
                     Electricals
battery :- 12v
Machenical dry disk brakes

                     Capacities
Fuel tank :-              45 liter
Engine sump:-         7.6 liter
Transmission oil :-  20 liter
Hydraulic oil :-       11.5 liter
                        Dimensions (in mm)
Total Length :-         3260
Total width :-           1625
Total Height:-          2020
Wheel Base:-           1910
Ground Clearance:- 350
 weight(kg):-            1730
Turning Radius :-    3500
                         Tyres
 Front tyres:-           6.00-16 , 8 ply rating
Rear tyres :-            12.6-28, 12 ply rating (13.6-28 optional)
