Mahindra Arjun 8085

SPECIFICATIONS :-

Make :- Mahindra and Mahindra

Model:- NE 479 TCI

Drive:-   4WD

                        Engine

Turbocharged Engine
Horse power:-       83HP

No. of cylinders :- 4

Cubic capacity:-    3329cc
Max torque:-         247.67Nm @1400-1600rpm

Rated RPM:-         2300rpm

Emission standard:- BS III A
                       Transmission
Gear box :-        Fully Synchromesh

No. of gears :-  12F+3R

                       Hydraulics

Hydraulic lift capacity :- 2500kg

Pump type :- Gear Pump

                      Steering

  Power  steering
                     Power take off
PTO hp:-    69HP
standard 6 spline P.T.O
540 PTO rpm @ 2187 engine rpm
                       Clutch
Single ,
Heavy duty
size 280mm

                  Cooling and cleaning
water cooled
1:- cyclonic pre-cleaner
2:- oil bath
3:- Paper element .
                     Electricals
battery :- 12v

                    Brakes
dry disk brakes
Size :- 6.5"

                     Capacities
Fuel tank :-              60 liter
                        Dimensions (in mm)
Total Length :-         3990

 Total width :-           2030

 Wheel Base:-           1965

Ground Clearance:-  245

  weight(kg):-          3600

 Turning Radius :-  4000

                          Tires
 Front tires:-           11.2-24 , 8 Ply Rating
Rear tires :-            16.9-30, 12 Ply Rating

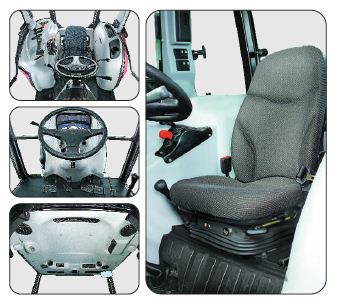

                                                            Inside View
